Interactive PCAP Touch Foil 24 Inch Projected Capacitive Waterproof

Name: Interactive PCAP Touch Foil 24 Inch Projected Capacitive Waterproof
Brand: CJTOUCH
Price: 1 USD

Buy cheap Interactive PCAP Touch Foil 24 Inch Projected Capacitive Waterproof product

Brand Name : CJTOUCH

Model Number : CJ80P-24-SIDE

Certification : FCC, CE, RoSH

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : L/C, Western Union, T/T

Supply Ability : 20000/month

Delivery Time : 5-15 working days

Packaging Details : 1/5 set in 1 Tube

Product name : PCAP Touch Foil

Touch Type : Capacitive

Series : 110p

Cover Glass : 3-12mm

Interface : USB 2.0

Calibration Way : Software Calibrate

OS : Windows/ Android/ Linux

Contact Now

24 Inch Projected PCAP Interactive Touch Foil Multi-Touch Waterproof Display

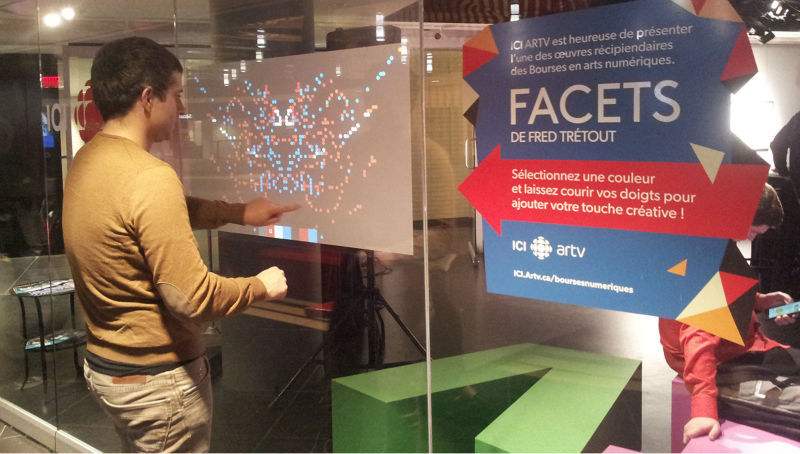

Transforms any glass/acrylic panel or store window into an interactive touch screen display. Ideal for integration within POS displays, kiosks and industrial grade applications.

Interactive Touch Foil Technology

Interactive touch foil is transparent touch-sensitive film, affixed to the membrane in the back of the glass or transparent acrylic plate, glass or acrylic panels can instantly transform size touch screen.Only a few microns thick our thin film display screens can turn any surface into a high definition multi media display surface. Rear projected images, video and dynamic media content can be displayed in any format, anywhere.

Main features

Capacitive touch, flat screen, no frame,surface waterproof
10-20 points multi touch
Suitable to be laminated to glass, acrylic or photographic film.
Smooth touch and accurate positioning
No mechanical or pressure-sensitive elements, durable and stable
Not sensitive to outer light, the change of light would not affect
Light weight, easy for transportation,low freight cost

Specification

Detection method	Projected Capacitive Technology (ITO is replace by Metal Mesh Matrix)
Input method	Finger and Capacitive pen
Models	Channels 160P
Size range	55-86 inch
Number of Sensors	5568
Number of touch points	10/ 20 points
Touch accuracy	<2mm
Speed of Response	<2.5 ms
Arm Rejection	Support
Aspect Ratio	4:3/16:9/16:10,customized size available

Thickness of sensor	<200um
Light transmission	90%
Adhesive	Permanent
Construction	Various thicknesses, Anti-glare, Anti-reflective, Clear, Chemical or Thermal Toughened
Thickness of glass	0-12mm
Interface	USB2.0
Safe Distance	2mm(distance between LED and sensor film)
Surrounding Requirement	Anti-sunlight, Water-proof
Function	Multi touch, Zoom in/out, Rotation
Operating System	Windows 7/8/8.1/10(32 bit / 64 bit)①, Linux,Android②,IOS
HID	HID-USB
Driver and Calibration	Auto installed and calibration driver
Power Consumption	0.5W-2W
Power Supply	5V USB
Operating Temperature	-20℃ to 70℃
Humidity	0-96%
Life time expectancy	8 Years
Warranty	1 Year
Certifications	UL/CE/ROHS

Software

Software(Firmware)
Scanning	Auto full screen scanning
Scanning frequency	60Hz~130hz
Operate system	Windows 7,Windows 8,Windows 10, Andriod,Linux
Calibration tool	Precalibrated & Software can be download in CJTouch Website

Note

① Win XP7/8/8.1/10 Home Edition of Windows only supports single touch
Multi touch works on Windows Professional/Enterprise/Ultimate Edition
② Android: Open HID-USB, switch off Report Rate Description, input value of Android’s VID(Vendor ID) and PID( Product ID) into IC advanced settings.

Detail images
Interactive PCAP Touch Foil 24 Inch Projected Capacitive Waterproof

Interactive PCAP Touch Foil 24 Inch Projected Capacitive Waterproof

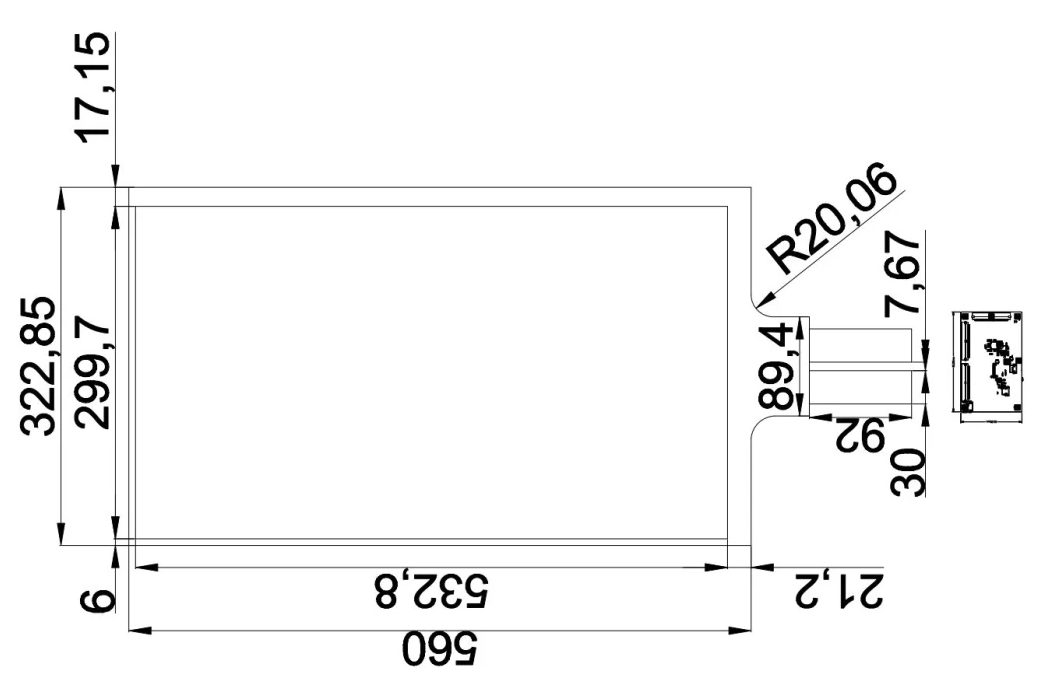

Drawing

Interactive PCAP Touch Foil 24 Inch Projected Capacitive Waterproof

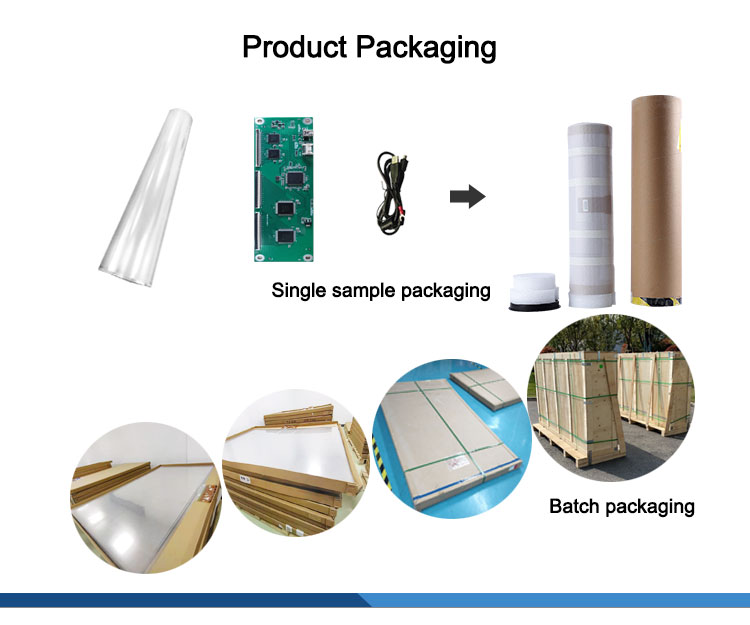

Packaging

Interactive PCAP Touch Foil 24 Inch Projected Capacitive Waterproof
