ODM 10.1inch Waterproof Touch Screen IP65 Outdoor Touchscreen Monitor
Advantage of our projected capacitive touch monitor:
· Industrial Desgin With Excellent Durablity
· Projected capacitive touch Technology Multi Touch 10 Touch Points
· IP65 Touch Screen Surface Water-Proof Sealled
· 3MM Enhanced Glass With Vandal Proof Resistance
· High Light Transmission Clear Glass
· Easy to Use:Plug and Works on Windows/Linux/(Android)
· Perfect Solutions For Use In Public
· VESA Mounting and Rear Mounting
· OEM/ODM& Customized Option: Brightness/Computer Integrated Inside/Etc
· Factory Competitive Price & Fast Delivery
Experience:
Established in 2006 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
Over 10 years of combined experience in researching and developing touch-enabled screens and monitors.
Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
Single or Multi-touch screens (custom sizes available)
Single or Multi-touch monitors (custom sizes and functions available)
All-in-one computers
Custom services
10.1inch Capacitive touch monitor specification :
| General |
| Model | COT101-CFK02 |
| Series | Water-proof and Flat screen |
| Monitor Dimensions | Width: 259.8mm Height: 182.5mm Depth: 40mm |
| LCD Type | 10.1" Active matrix TFT-LCD |
| Video Input | VGA and DVI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max |
| Mount Interface | 1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical |
| LCD Specification |
| Active Area(mm) | 216.96 (H) x 135.6(V) |
| Resolution | 1280×800 @60Hz |
| Dot Pitch(mm) | 0.1695(H) x 0.1695(V) |
| Nominal Input Voltage VDD | 3.3V |
| Viewing angle (v/h) | 80/80/80/80 (Typ.)(CR≥10) |
| Contrast | 600:1 |
| Luminance(cd/m2) | 330 |
| Response Time(Rising) | 25msec |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 10000(Min) |
| Touchscreen Specification |
| Type | Cjtouch Projected Capacitive touch screen |
| Multi touch | 10points touch |
| Touch Life Cycle | 10 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment |
| Operating Temp. | 0~50°C |
| Storage Temp. | -20~60°C |
| Operating RH: | 20%~80% |
| Storage RH: | 10%~90% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
10.1 inch PCAP touch monitor drawing:

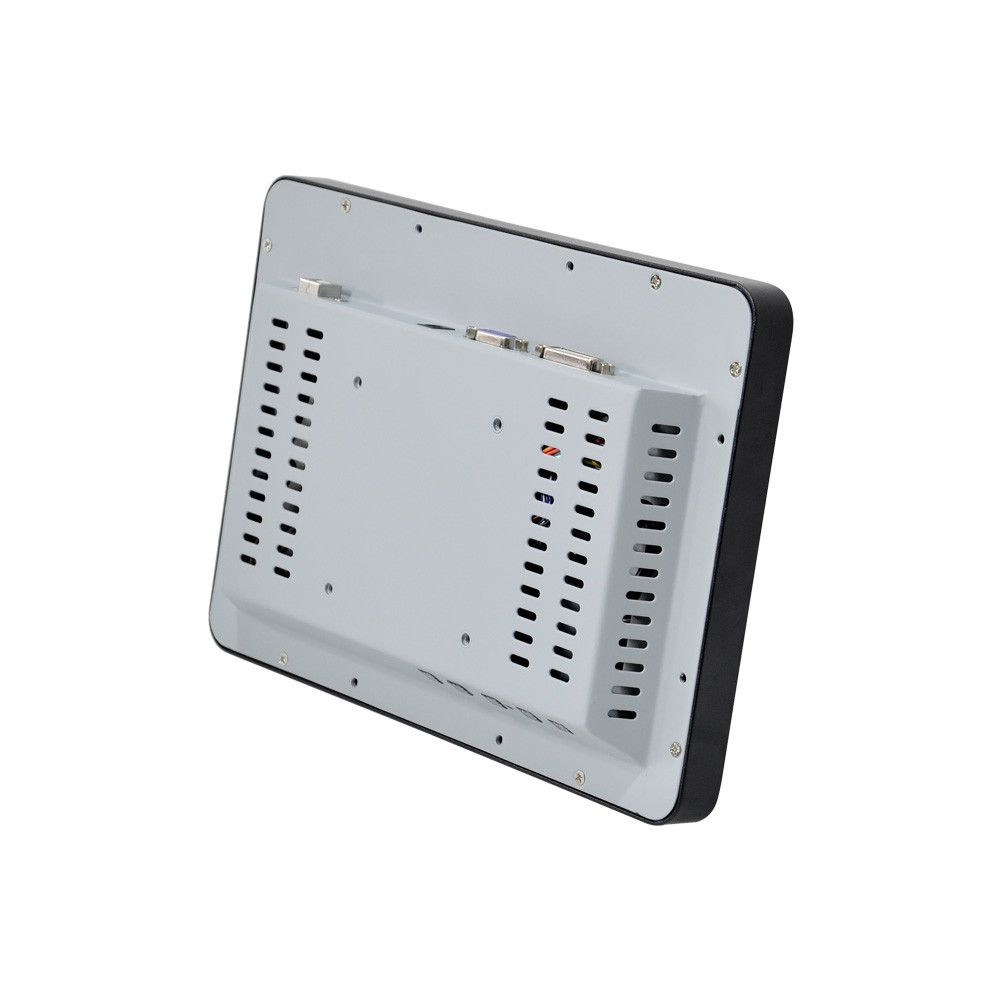

10.1 inch Capacitive display monitor pictures:
